Rolling (metalworking)

Lore & Background

These passed flat bars between rolls to form iron plate, then through grooved slitters to produce rods.

Reader's Guide

Rolling is a fundamental manufacturing process, with hot rolling processing more tonnage than any other manufacturing process and cold rolling the most among cold working processes. Modern rolling has evolved into continuous mills, tandem mills, and universal mills for precise thickness control and high dimensional accuracy. The process remains essential for producing structural steel, rails, sheet metal, and bar stock.

Did You Know?

• The concept of rolling metal is similar to rolling dough.
• Hot rolling processes more tonnage than any other manufacturing process.
• Henry Cort's grooved rolls allowed mills to produce 15 times more output per day than with a hammer.

The Core Process and Its Two Temperatures

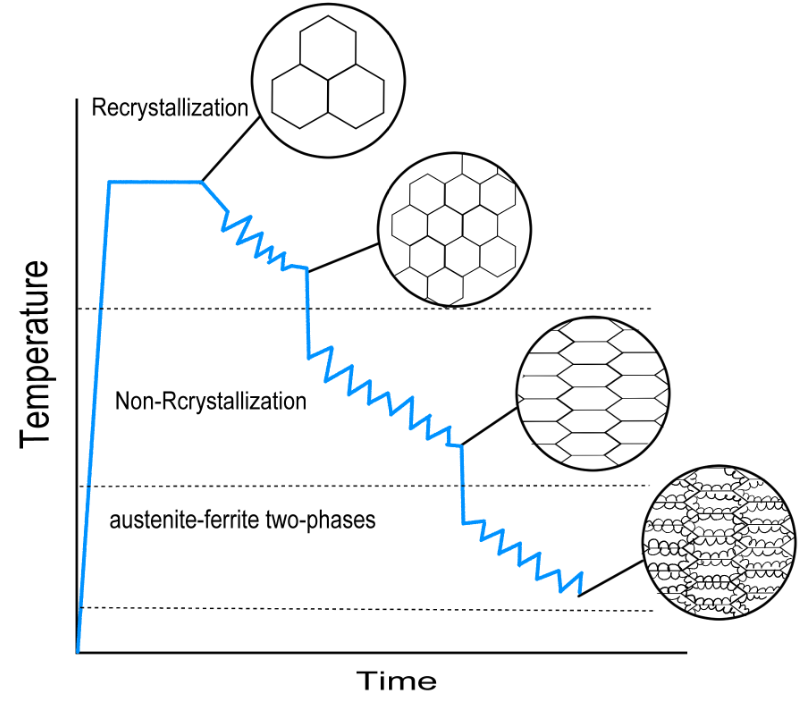

Rolling is a fundamental metal forming technique in which a piece of metal stock is fed through one or more pairs of rolls. The objective is threefold: reduce the thickness, achieve uniformity across the piece, and impart a specific mechanical property to the final product. The principle is intuitively comparable to rolling out dough in a kitchen. The process is divided into two categories based on where the metal's working temperature sits relative to its recrystallization point. When the metal is above that threshold, the operation is called hot rolling; when it is below, it is called cold rolling. In sheer volume, hot rolling handles more tonnage than any other manufacturing process, while cold rolling dominates among all cold working methods. The individual roll stands are assembled into rolling mills, which rapidly convert semi-finished casting products—typically steel—into finished goods such as I-beams, angle stock, channel stock, bar stock, and railway rails. Most steel mills maintain dedicated rolling mill divisions for this conversion step.

Origins in Iron and Steel Production

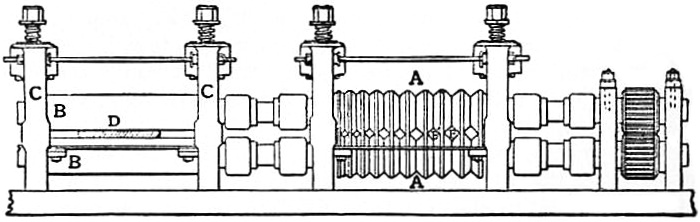

These early machines pressed flat bars between rolls to create iron plate, then forced it through grooved rolls—called slitters—to yield rods. Before these mills, European plate iron had been shaped in forges.

From Water Wheels to the Father of Modern Rolling

For well into the eighteenth century, rolling mills relied on water wheels for their driving power. Steam dramatically boosted production capacity and remained the dominant power source until electric motors took over shortly after 1900. A pivotal figure in the evolution of rolling was Henry Cort of the Funtley Iron Mills near Fareham, Hampshire. While he was not the very first to employ grooved rolls, he was the first to integrate the best features of multiple ironmaking and shaping processes known at the time into a single system. The result was a mill capable of producing fifteen times more output per day than a hammer. For this synthesis, modern writers have dubbed him the "father of modern rolling." Meanwhile, rolling mills for lead existed by the late 17th century, and copper and brass were being rolled by the late 18th century.

Modern Mill Configurations and the Scale of Production

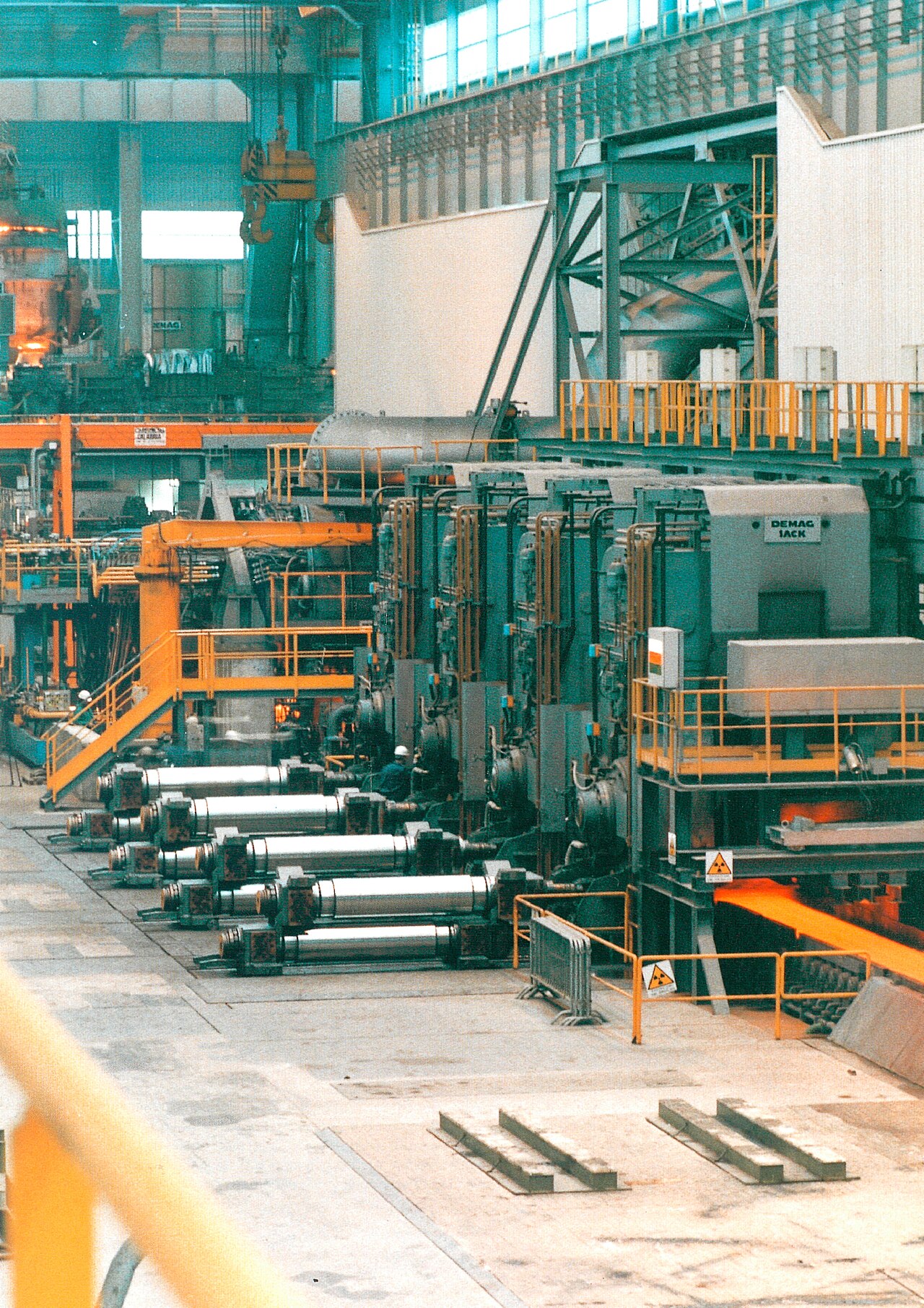

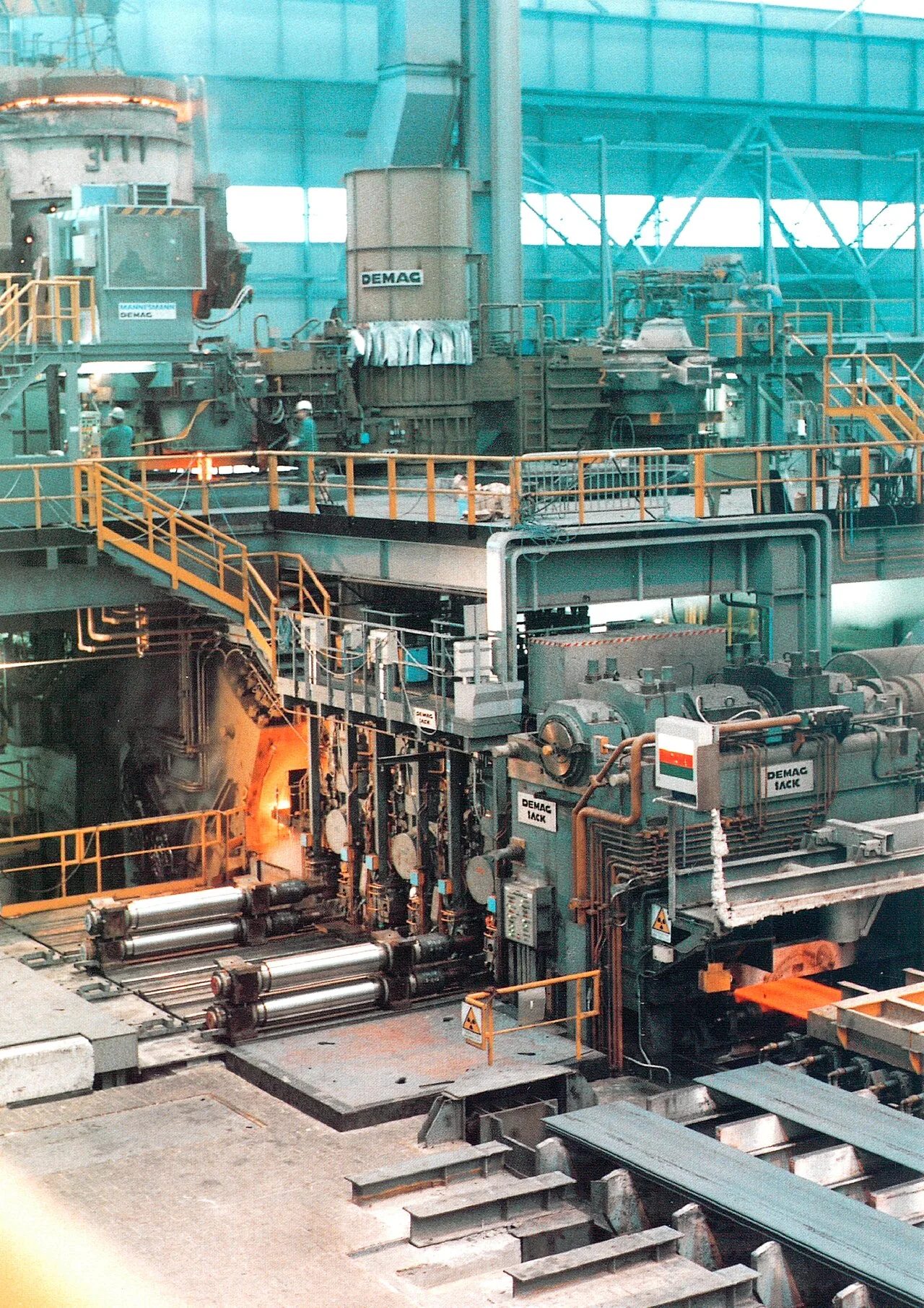

As technology advanced, the scale of rolling operations grew rapidly. Today's rolling mills have evolved far beyond those early two-high and three-high layouts. Continuous mills, in which metal passes unbroken through a sequence of stands, are the workhorses for wire rods, bars, and strips, delivering high production rates and uniform quality. Tandem mills, with multiple stands operating in series, are favored for hot and cold strip rolling to achieve precise thickness control and superior surface finish. Universal mills employ both horizontal and vertical rolls, making them ideal for H-beams, rails, and wide plates with high dimensional accuracy. Beyond these, specialized processes such as ring rolling, roll bending, roll forming, profile rolling, and controlled rolling address particular product geometries and property requirements.
